Cell Fender(YCL)
If see more information on the product,
Please click right “Download” button

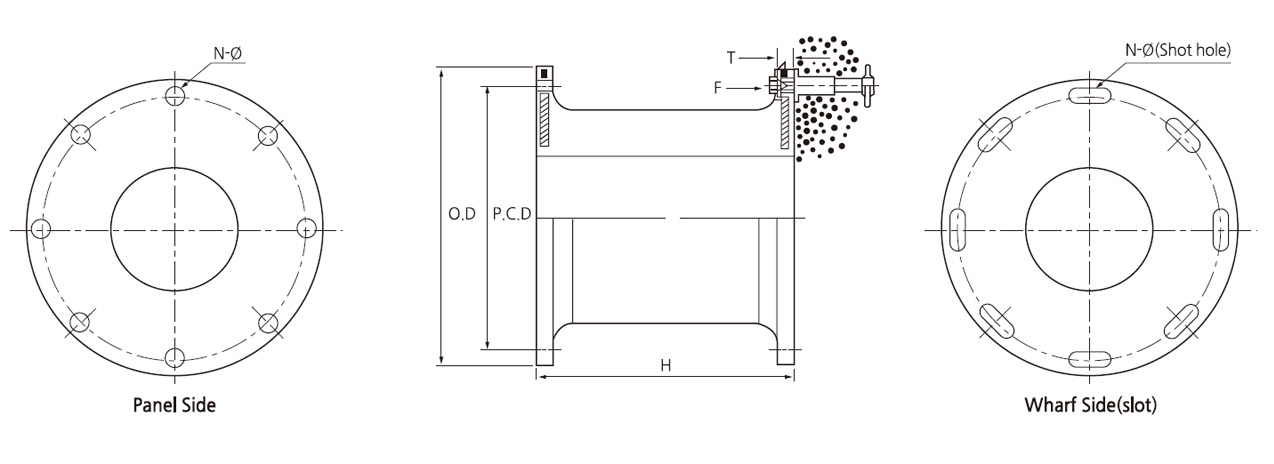

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Dimension | F | O.D | P.C.D | N-Ø | N-Ø (Slot Hole) |
T |
|---|---|---|---|---|---|---|
| Height | ||||||
| YCL 300H | M20(3/4") | 400 | 340 | 4-25 | 4-25×35 | 15 |
| YCL 500H | M24 (1") | 650 | 550 | 4-32 | 4-32×40 | 25 |
| YCL 630H | M27 (1 1/8") | 840 | 700 | 4-39 | 4-39×49 | 25 |
| YCL 650H | M27 (1 1/8") | 870 | 730 | 4-39 | 4-39×49 | 25 |
| YCL 800H | M30 (1 1/4") | 1050 | 900 | 6-40 | 6-40×50 | 30 |
| YCL 1000H | M36 (1 1/2") | 1300 | 1100 | 6-47 | 6-47×58 | 35 |
| YCL 1150H | M42 (1 3/4") | 1500 | 1300 | 6-50 | 6-50×65 | 37 |
| YCL 1200H | M42 (1 3/4") | 1550 | 1350 | 6-53 | 6-53×65 | 40 |
| YCL 1250H | M42 (1 3/4") | 1650 | 1450 | 6-53 | 6-53×65 | 40 |
| YCL 1400H | M48 (2") | 1800 | 1600 | 6-60 | 6-60×75 | 42 |
| YCL 1450H | M48 (2") | 1850 | 1650 | 6-60 | 6-60×75 | 42 |
| YCL 1600H | M48 (2") | 2000 | 1800 | 8-60 | 8-60×75 | 45 |
| YCL 1700H | M56 (2 1/4") | 2100 | 1900 | 8-66 | 8-66×80 | 50 |
| YCL 2000H | M64 (2 1/2") | 2200 | 2000 | 8-74 | 8-74×95 | 50 |
| YCL 2250H | M64 (2 1/2") | 2550 | 2300 | 10-74 | 10-74×95 | 57 |
| YCL2500H | M64 (2 1/2") | 2950 | 2700 | 10-74 | 10-74×95 | 70 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.

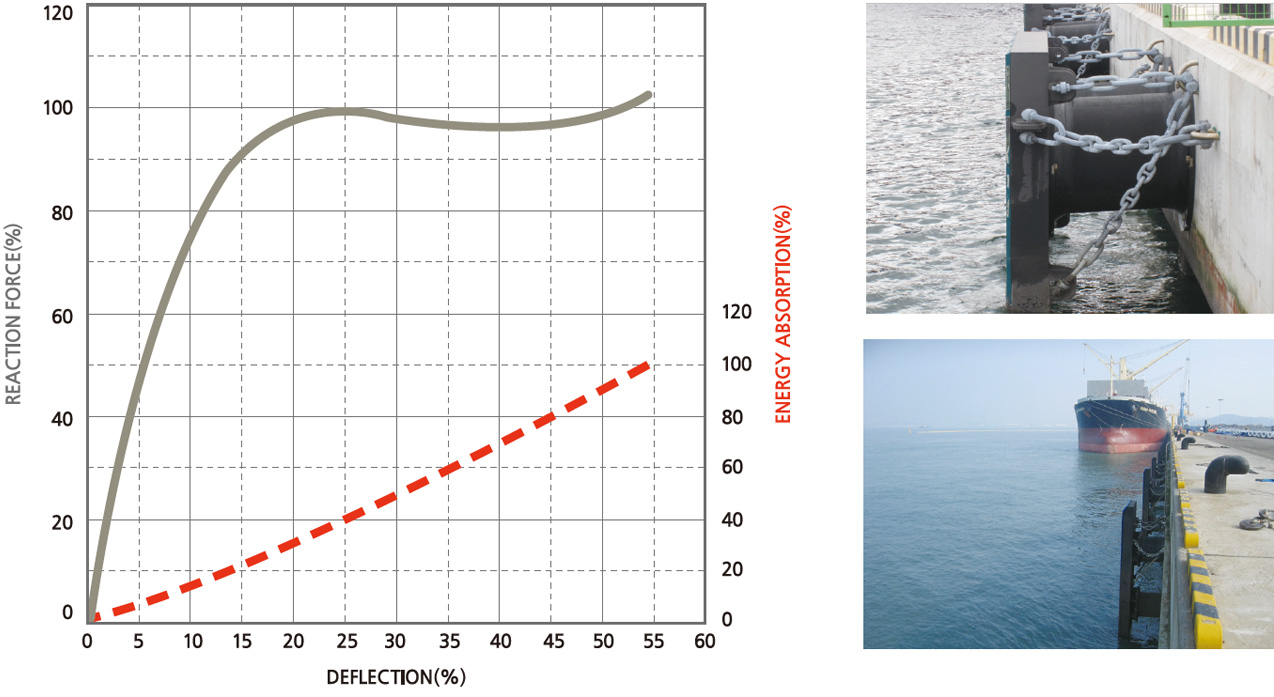

Performance Curve
