D & DA Type Fender

If see more information on the product,
Please click right “Download” button

Download

D & DA Type Fender

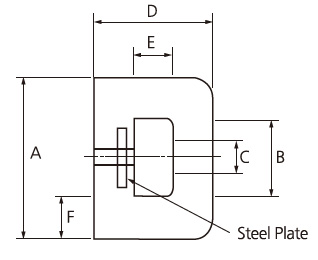

Drawing

Demension

Size A B C D E F
YD 50×100 100 70 Ø30 50 15 17.5
  • Above detail dimension of components can be changed depending on owner specification and local environment condition.
  • Detail dimension will be guided by our drawing and specification.

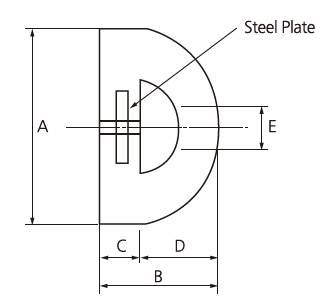

Drawing

Demension

Size A B C D E
YD 50×70 70 50 15 35 Ø30
YD 80×150 150 80 25 55 Ø60
  • Above detail dimension of components can be changed depending on owner specification and local environment condition.
  • Detail dimension will be guided by our drawing and specification.

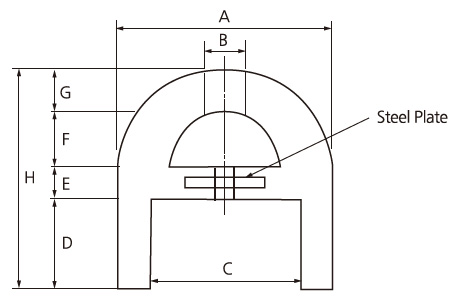

Drawing

Demension

Size A B C D E F G H
YDA 150-1 150 Φ60 100 65 20 30 35 150
YDA 150-2 150 Φ60 100 50 35 30 35 150
YDA 200 200 Φ60 150 90 30 40 40 200
  • Above detail dimension of components can be changed depending on owner specification and local environment condition.
  • Detail dimension will be guided by our drawing and specification.
