NV Fender(YNV)
If see more information on the product,
Please click right “Download” button

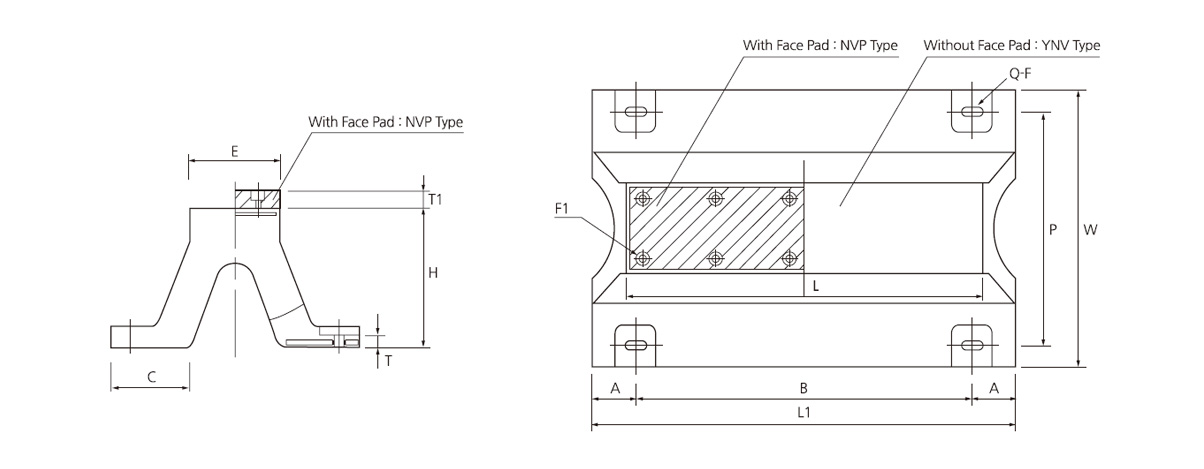

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| H | F | P | W | C | E | T | NVP Type | L=1000 (Q=4) |
L=1500 (Q=6) |
L=2000 (Q=8) |
L=2500 (Q=8) |
L=3000 (Q=10) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A | A | A | A | |||||||||
| F1 | T1 | B | B | B | B | B | |||||||
| L1 | L1 | L1 | L1 | L1 | |||||||||
| YNV 150 | M22 (7/8") |
240 | 300 | 96 | 120 | 18 | M16 | 30 | 110 | 112.5 | 107.5 | 110 | 107.5 |
| 855 | 675 x 2 | 620 x 3 | 785 x 3 | 715 x 4 | |||||||||
| 1075 | 1575 | 2075 | 2575 | 3075 | |||||||||
| YNV 200 | M24 (1") |
320 | 400 | 128 | 160 | 18 | M16 | 30 | 120 | 120 | 120 | 122.5 | 120 |
| 860 | 680 x 2 | 620 x 3 | 785 x 3 | 715 x 4 | |||||||||
| 1100 | 1600 | 2100 | 2600 | 3100 | |||||||||
| YNV 250 | M27 (1 1/8") |
410 | 500 | 160 | 200 | 23 | M16 | 30 | 130 | 132.5 | 132.5 | 127.5 | 132.5 |
| 865 | 680 x 2 | 620 x 3 | 790 x 3 | 715 x 4 | |||||||||
| 1125 | 1625 | 2125 | 2625 | 3125 | |||||||||
| YNV 300 | M30 (1 1/4") |
490 | 600 | 192 | 240 | 23 | M16 | 30 | 140 | 140 | 132.5 | 140 | 145 |
| 870 | 685 x 2 | 625 x 3 | 790 x 3 | 715 x 4 | |||||||||
| 1150 | 1650 | 2150 | 2650 | 3150 | |||||||||
| YNV 400 | M36 (1 1/2") |
670 | 800 | 256 | 320 | 30 | M16 | 30 | 150 | 150 | 147.5 | 150 | 150 |
| 900 | 700 x 2 | 635 x 3 | 800 x 3 | 725 x 4 | |||||||||
| 1200 | 1700 | 2200 | 2700 | 3200 | |||||||||
| YNV 500 | M42 (1 3/4") |
840 | 1000 | 320 | 400 | 35 | M20 | 50 | 160 | 160 | 157.5 | 160 | 165 |
| 930 | 715 x 2 | 645 x 3 | 810 x 3 | 730 x 4 | |||||||||
| 1250 | 1750 | 2250 | 2750 | 3250 | |||||||||
| YNV 600 | M48 (2") |
1010 | 1200 | 384 | 480 | 40 | M20 | 50 | 170 | 170 | 167.5 | 170 | 170 |
| 960 | 730 x 2 | 655 x 3 | 820 x 3 | 740 x 4 | |||||||||
| 1300 | 1800 | 2300 | 2800 | 3300 | |||||||||
| YNV 800 | M64 (2 1/2") |
1340 | 1600 | 501 | 640 | 45 | M24 | 60 | 180 | 180 | 180 | 182.5 | 180 |
| 1040 | 770 x 2 | 680 x 3 | 845 x 3 | 760 x 4 | |||||||||
| 1400 | 1900 | 2400 | 2900 | 3400 | |||||||||
| YNV 1000 | M64 (2 1/2") |
1680 | 2000 | 640 | 800 | 50 | M24 | 60 | 200 | 200 | 200 | 202.5 | 200 |
| 1100 | 800 x 2 | 700 x 3 | 865 x 3 | 775 x 4 | |||||||||
| 1500 | 2000 | 2500 | 3000 | 3500 | |||||||||
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.

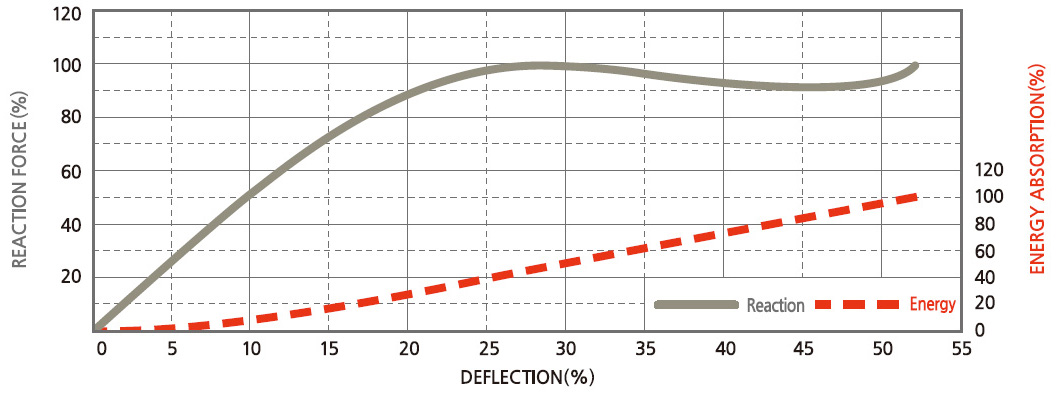

Performance Curve
