Pneumatic Fender(YPF)
If see more information on the product,
Please click right “Download” button
Performance Table
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Internal Pressure : 50KPa(0.5kgf/㎠) | Internal Pressure : 80KPa(0.8kgf/㎠) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fender size | Energy Absorption | Reaction Force | Hull Pressure at 60% Def | Energy Absorption | Reaction Force | Hull Pressure at 60% Def. | Approx. Weight(kg) | ||
| mm(D) | mm(L) | kN-m | kN | KPa | kN-m | kN | KPa | Body only | With CTN |
| YPF 300 | 500 | 1.2 | 21 | 126 | 1.7 | 28 | 166 | 12 | - |
| 600 | 1.5 | 26 | 125 | 2.1 | 35 | 165 | 17 | - | |
| YPF 500 | 800 | 5.6 | 59 | 129 | 7.5 | 79 | 170 | 30 | - |
| 1000 | 6 | 64 | 132 | 8 | 85 | 174 | 36 | - | |
| YPF 600 | 1000 | 8 | 74 | 126 | 11 | 98 | 166 | 45 | - |
| 1200 | 11 | 95 | 132 | 15 | 125 | 173 | 50 | - | |
| YPF 700 | 1500 | 17 | 137 | 135 | 24 | 180 | 177 | 80 | - |
| YPF 800 | 1500 | 32 | 182 | 122 | 45 | 239 | 160 | 140 | 310 |
| 2000 | 45 | 257 | 132 | 63 | 338 | 174 | 170 | 370 | |
| YPF 1000 | 1500 | 32 | 182 | 122 | 45 | 239 | 160 | 140 | 310 |
| 2000 | 45 | 257 | 132 | 63 | 338 | 174 | 170 | 370 | |
| YPF 1200 | 1800 | 57 | 265 | 123 | 80 | 348 | 163 | 170 | 380 |
| 2000 | 63 | 297 | 126 | 88 | 390 | 166 | 185 | 410 | |
| 3000 | 98 | 460 | 145 | 137 | 605 | 169 | 270 | 570 | |
| YPF 1350 | 2500 | 102 | 427 | 130 | 141 | 561 | 170 | 280 | 545 |
| 3500 | 154 | 650 | 142 | 213 | 854 | 173 | 355 | 660 | |
| YPF 1500 | 2500 | 125 | 471 | 128 | 175 | 619 | 170 | 305 | 705 |
| 3000 | 153 | 579 | 132 | 214 | 761 | 174 | 345 | 745 | |
| 4000 | 215 | 805 | 145 | 300 | 1058 | 179 | 400 | 900 | |
| YPF 1700 | 3000 | 191 | 639 | 128 | 267 | 840 | 168 | 505 | 1115 |
| 7200 | 534 | 1769 | 152 | 746 | 2325 | 195 | 1203 | 2250 | |
| YPF 2000 | 3000 | 254 | 727 | 123 | 355 | 955 | 166 | 550 | 1350 |
| 3500 | 308 | 875 | 128 | 430 | 1150 | 168 | 660 | 1560 | |
| 6000 | 630 | 1750 | 143 | 880 | 2300 | 171 | 945 | 2200 | |
| YPF 2500 | 4000 | 663 | 1381 | 137 | 925 | 1815 | 180 | 1105 | 2610 |
| 5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 | 1305 | 2985 | |
| 7700 | 1341 | 2953 | 158 | 1872 | 3880 | 206 | 1850 | 3840 | |
| YPF 3000 | 5000 | 1230 | 2221 | 139 | 1717 | 2919 | 183 | 1690 | 4290 |
| YPF 3300 | 4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 | 1850 | 4260 |
| 6500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 | 2150 | 5270 | |
| 10600 | 3067 | 5257 | 158 | 4281 | 6907 | 208 | 2505 | 6995 | |
| YPF 4500 | 7000 | 3869 | 4695 | 134 | 5400 | 6188 | 176 | 4100 | 9100 |
| 9000 | 4752 | 5747 | 146 | 6633 | 7551 | 192 | 4895 | 11145 | |
| 12000 | 6473 | 7984 | 154 | 9037 | 10490 | 202 | 5980 | 13705 | |
- Above detail performance of components can be changed depending on owner specification and local environment condition.
- Detail performance will be guided by our drawing and specification.

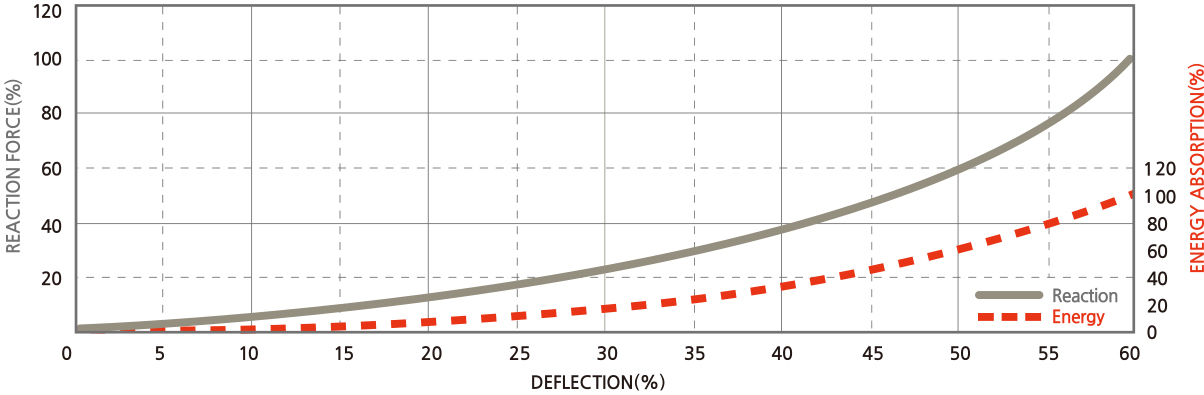

Performance Curve
