Foam Filled Fender(YFF)
If see more information on the product,
Please click right “Download” button

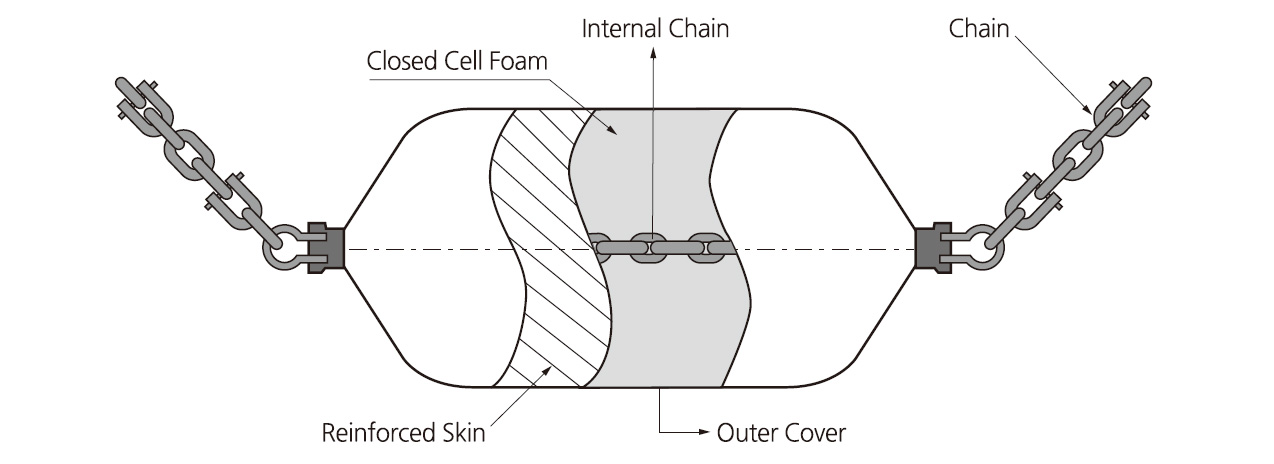

Drawing
Performance Table
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Diameter | 700 | 1000 | 1200 | 1350 | 1500 | 1700 | 2000 | 2500 | 3000 | 3300 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | 1500 | 2000 | 1500 | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 | 3000 | 3500 | 4000 | 4500 | 4000 | 4500 | 5500 | 4900 | 6000 | 4500 | 6500 |
| LOW REACTION | ||||||||||||||||||||
| RㆍF[kN] | 82.3 | 118 | 106 | 153 | 171 | 229 | 253 | 318 | 347 | 370 | 506 | 606 | 694 | 717 | 806 | 1070 | 906 | 1376 | 1011 | 1641 |
| EㆍA[kN-m] | 17.6 | 23.5 | 29.4 | 41.2 | 52.9 | 76.4 | 88.2 | 118 | 141 | 171 | 271 | 323 | 376 | 482 | 541 | 717 | 859 | 1111 | 900 | 1452 |
| STANDARD CAPACITY | ||||||||||||||||||||
| RㆍF[kN] | 137 | 196 | 176 | 255 | 284 | 382 | 421 | 529 | 578 | 617 | 843 | 1009 | 1156 | 1196 | 1343 | 1784 | 1509 | 2293 | 1686 | 2734 |
| EㆍA[kN-m] | 29.4 | 39.2 | 49.0 | 68.6 | 88.2 | 127 | 147 | 196 | 235 | 284 | 451 | 539 | 627 | 804 | 902 | 1196 | 1431 | 1852 | 1499 | 2421 |
| HIGH CAPACITY | ||||||||||||||||||||
| RㆍF[kN] | 176 | 235 | 225 | 333 | 363 | 451 | 539 | 647 | 755 | 804 | 1098 | 1303 | 1509 | 1558 | 2107 | 2323 | 2303 | 2979 | 2195 | 3543 |
| EㆍA[kN-m] | 29.4 | 49.0 | 58.8 | 88.2 | 118 | 147 | 196 | 235 | 304 | 363 | 588 | 706 | 813 | 1039 | 1421 | 1558 | 1862 | 2401 | 1950 | 3146 |
| EXTRA HIGH CAPACITY | ||||||||||||||||||||
| RㆍF[kN] | 255 | 333 | 333 | 480 | 529 | 666 | 794 | 951 | 1098 | 1176 | 1607 | 1911 | 2205 | 2274 | 3087 | 3401 | 3371 | 4361 | 3205 | 5184 |
| EㆍA[kN-m] | 49.0 | 68.6 | 88.2 | 127 | 176 | 216 | 284 | 343 | 441 | 539 | 862 | 1029 | 1186 | 1519 | 2068 | 2283 | 2715 | 3518 | 2842 | 4596 |
| SUPER HIGH CAPACITY | ||||||||||||||||||||
| RㆍF[kN] | 343 | 461 | 549 | 657 | 725 | 911 | 1088 | 1303 | 1499 | 1607 | 2195 | 2617 | 3018 | 3107 | 4224 | 4645 | 4606 | 5968 | 4390 | 7095 |
| EㆍA[kN-m] | 68.6 | 88.2 | 127 | 176 | 235 | 294 | 392 | 470 | 608 | 735 | 1176 | 1401 | 1617 | 2087 | 2832 | 3116 | 3714 | 4812 | 3891 | 6292 |
- Above detail performance of components can be changed depending on owner specification and local environment condition.
- Detail performance will be guided by our drawing and specification.

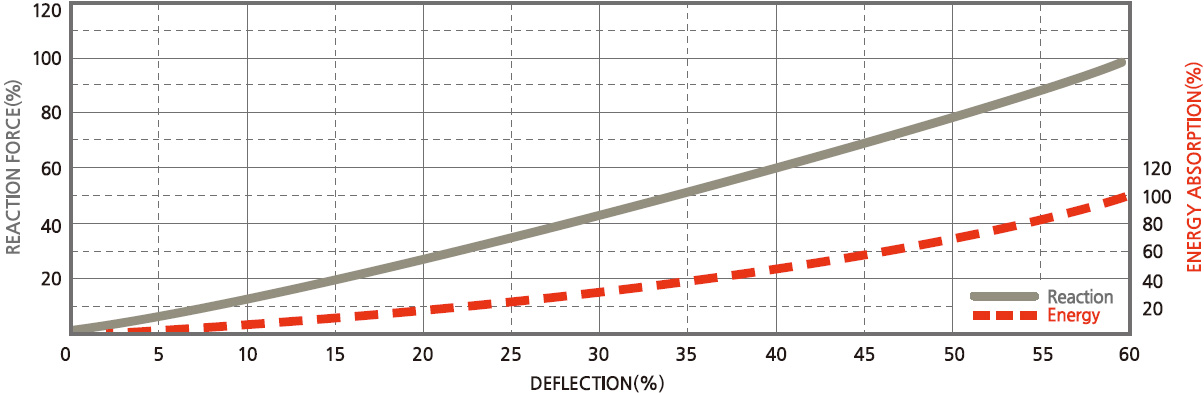

Performance Curve
