Cone Fender(YCN)
If see more information on the product,
Please click right “Download” button

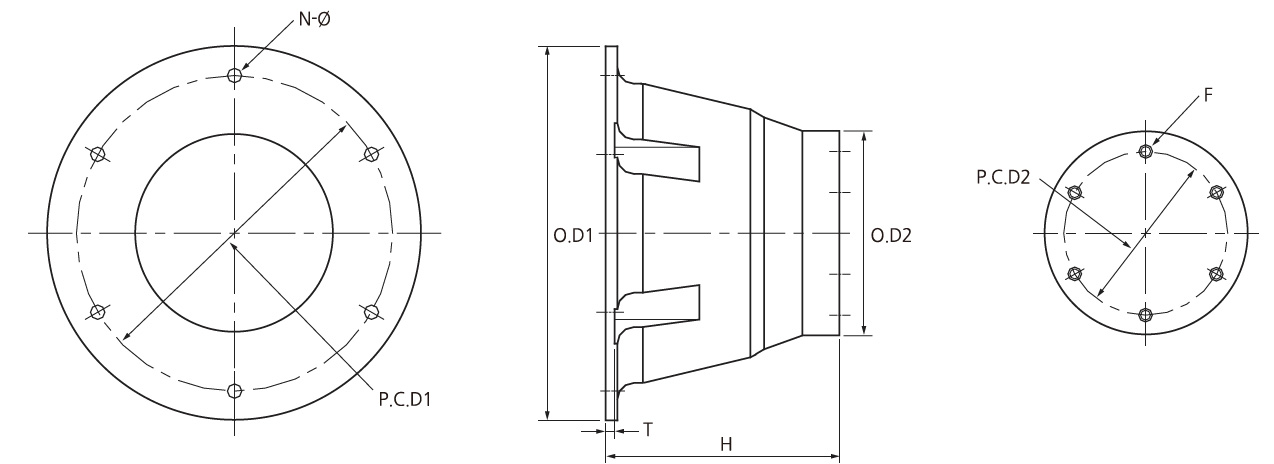

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Dimension | F | O.D1 | P.C.D1 | O.D2 | P.C.D2 | T | N-Ø |
|---|---|---|---|---|---|---|---|
| Height | |||||||
| YCN 300H | M20(3/4") | 500 | 440 | 262 | 210 | 18 | 4-26 |
| YCN 350H | M20(3/4") | 575 | 510 | 306 | 245 | 20 | 4-26 |
| YCN 400H | M20(3/4") | 650 | 585 | 350 | 280 | 20 | 4-26 |
| YCN 500H | M24(1") | 820 | 730 | 436 | 350 | 22 | 4-30 |
| YCN 600H | M24(1") | 900 | 810 | 525 | 420 | 23 | 4-30 |
| YCN 700H | M30(1 1/4") | 1120 | 1020 | 615 | 490 | 26 | 4-38 |
| YCN 800H | M36(1 1/2") | 1250 | 1165 | 700 | 560 | 31 | 6-44 |
| YCN 900H | M36(1 1/2") | 1450 | 1313 | 785 | 630 | 36 | 6-44 |
| YCN 1000H | M42(1 3/4") | 1600 | 1460 | 875 | 700 | 38 | 6-50 |
| YCN 1150H | M42(1 3/4") | 1850 | 1550 | 1000 | 805 | 41 | 6-50 |
| YCN 1200H | M42(1 3/4") | 1920 | 1750 | 1050 | 840 | 46 | 8-50 |
| YCN 1300H | M48(2") | 2080 | 1900 | 1140 | 910 | 50 | 8-60 |
| YCN 1400H | M48(2") | 2240 | 2040 | 1230 | 980 | 53 | 8-60 |
| YCN 1600H | M48(2") | 2500 | 2330 | 1400 | 1120 | 80 | 8-60 |
| YCN 1800H | M56(2 1/4") | 2880 | 2620 | 1575 | 1260 | 90 | 10-70 |
| YCN 2000H | M56(2 1/4") | 3200 | 2920 | 1700 | 1400 | 100 | 10-70 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.

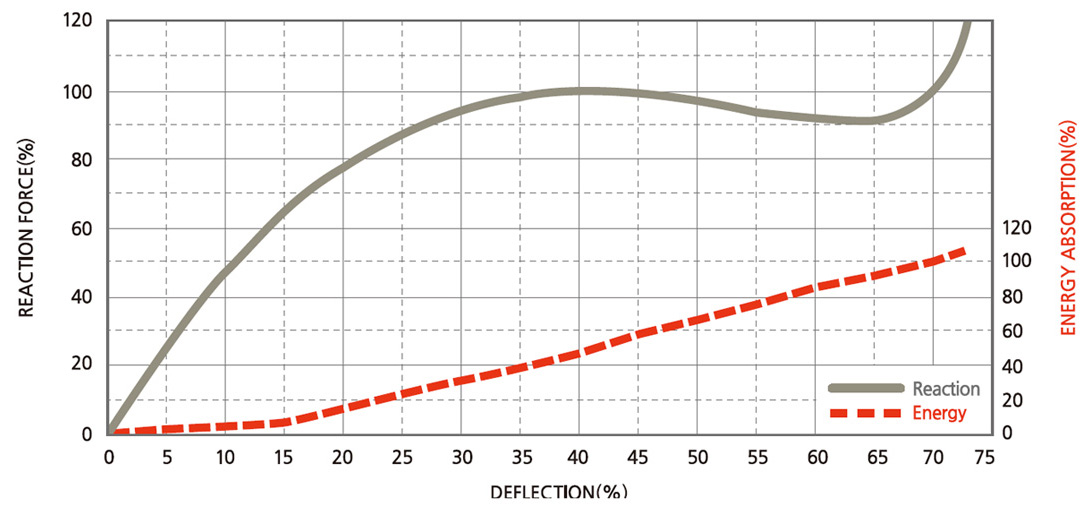

Performance Curve
