YMI 와이엠아이(주) RUBBER FENDER(방현재,방충재)제조회사

If see more information on the product,
Please click right “Download” button

*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.

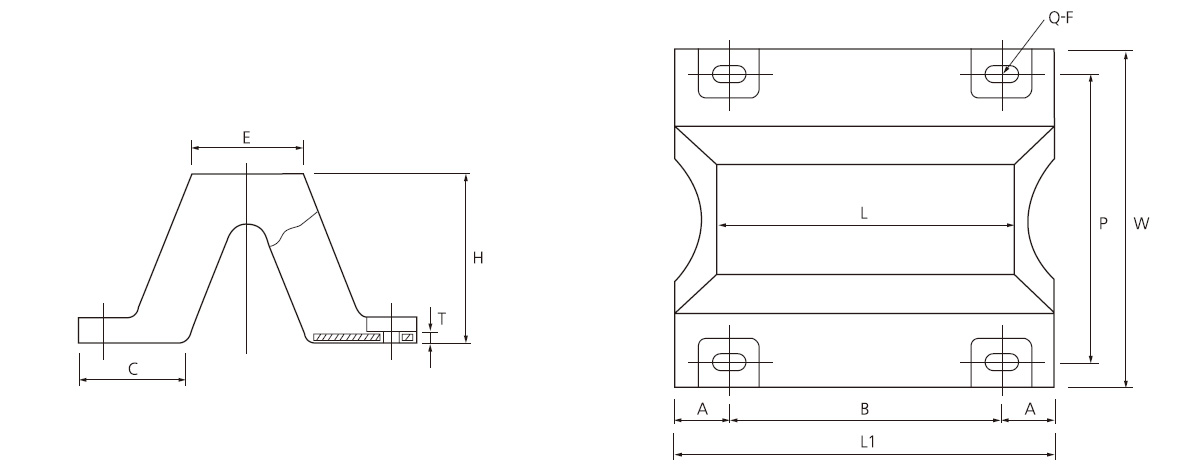

H	F	P	W	C	E	T	L=1000 (Q=4)	L=1500 (Q=6)	L=2000 (Q=8)	L=2500 (Q=8)	L=3000 (Q=10)	L=3500 (Q=12)
							A	A	A	A	A	A
							B	B	B	B	B	B
							L1	L1	L1	L1	L1	L1
YOV 150	M22 (7/8")	240	300	96	97.5	17	110	112.5	107.5	110	107.5	110
							855	675 x 2	620 x 3	785 x 3	715 x 4	671 x 5
							1075	1575	2075	2575	3075	3575
YOV 200	M24 (1")	320	400	128	130	17	120	120	120	122.5	120	120
							860	680 x 2	620 x 3	785 x 3	715 x 4	672 x 5
							1100	1600	2100	2600	3100	3600
YOV 250	M27 (1 1/8")	410	500	160	162.5	22	130	132.5	132.5	127.5	132.5	130
							865	680 x 2	620 x 3	790 x 3	715 x 4	673 x 5
							1125	1625	2125	2625	3125	3625
YOV 300	M30 (1 1/4")	490	600	192	195	23	140	140	137.5	140	145	140
							870	685 x 2	625 x 3	790 x 3	715 x 4	674 x 5
							1150	1650	2150	2650	3150	3650
YOV 400	M36 (1 1/2")	670	800	256	260	31	150	150	147.5	150	150	150
							900	700 x 2	635 x 3	800 x 3	725 x 4	680 x 5
							1200	1700	2200	2700	3200	3700
YOV 500	M42 (1 3/4")	840	1000	320	325	34	160	160	157.5	160	165	160
							930	715 x 2	645 x 3	810 x 3	730 x 4	686 x 5
							1250	1750	2250	2750	3250	3750
YOV 600	M48 (2")	1010	1200	384	390	40	170	170	167.5	170	170	170
							960	730 x 2	655 x 3	820 x 3	740 x 4	692 x 5
							1300	1800	2300	2800	3300	3800
YOV 800	M64 (2 1/2")	1340	1600	501	525	45	180	180	180	182.5	180	-
							1040	770 x 2	680 x 3	845 x 3	760 x 4	-
							1400	1900	2400	2900	3400	-
YOV 1000	M64 (2 1/2")	1680	2000	640	650	49	200	200	200	202.5	200	-
							1100	800 x 2	700 x 3	865 x 3	775 x 4	-
							1500	2000	2500	3000	3500	-

Above detail dimension of components can be changed depending on owner specification and local environment condition.
Detail dimension will be guided by our drawing and specification.
