BP Fender(YBP)
If see more information on the product,
Please click right “Download” button

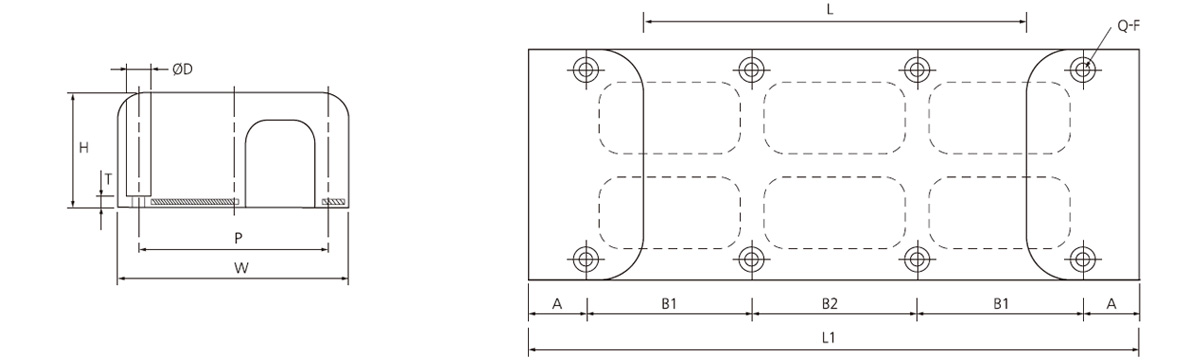

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| H | F | P | W | ΦD | T | L=1000(Q=6) | L=1500(Q=6) | L=2000(Q=8) | L=2500(Q=8) | L=3000(Q=10) |
|---|---|---|---|---|---|---|---|---|---|---|
| A | A | A | A | A | ||||||
| B1 | B1 | B1 | B1 | B1 | ||||||
| B2 | B2 | B2 | B2 | B2 | ||||||
| L1 | L1 | L1 | L1 | L1 | ||||||
| YBP 150 | M24 (1") |
200 | 300 | 65 | 25 | 75 | 75 | 75 | 75 | 75 |
| 575 | 825 | 720 | 885 | 790 | ||||||
| - | - | 710 | 880 | 785 x 2 | ||||||
| 1300 | 1800 | 2300 | 2800 | 3300 | ||||||
| YBP 200 | M30 (1 1/4") |
290 | 400 | 75 | 30 | 100 | 100 | 100 | 100 | 100 |
| 600 | 850 | 735 | 900 | 800 | ||||||
| - | - | 730 | 900 | 800 x 2 | ||||||
| 1400 | 1900 | 2400 | 2900 | 3400 | ||||||
| YBP 250 | M30 (1 1/4") |
380 | 500 | 80 | 35 | 125 | 125 | 125 | 125 | 125 |
| 625 | 875 | 750 | 920 | 815 | ||||||
| - | - | 750 | 910 | 810 x 2 | ||||||
| 1500 | 2000 | 2500 | 3000 | 3500 | ||||||
| YBP 300 | M36 (1 1/2") |
470 | 600 | 90 | 35 | 150 | 150 | 150 | 150 | 150 |
| 650 | 900 | 770 | 935 | 825 | ||||||
| - | - | 760 | 930 | 825 x 2 | ||||||
| 1600 | 2100 | 2600 | 3100 | 3600 | ||||||
| YBP 400 | M36 (1 1/2") |
640 | 800 | 90 | 40 | 200 | 200 | 200 | 200 | 200 |
| 700 | 950 | 800 | 970 | 850 | ||||||
| - | - | 800 | 960 | 850 x 2 | ||||||
| 1800 | 2300 | 2800 | 3300 | 3800 | ||||||
| YBP 500 | M42 (1 3/4") |
820 | 1000 | 110 | 50 | 250 | 250 | 250 | 250 | 250 |
| 750 | 1000 | 835 | 1000 | 875 | ||||||
| - | - | 830 | 1000 | 875 x 2 | ||||||
| 2000 | 2500 | 3000 | 3500 | 4000 | ||||||
| YBP 600 | M48 (2") |
990 | 1200 | 125 | 60 | 300 | 300 | 300 | 300 | 300 |
| 800 | 1050 | 870 | 1035 | 900 | ||||||
| - | - | 860 | 1030 | 900 x 2 | ||||||
| 2200 | 2700 | 3200 | 3700 | 4200 | ||||||
| YBP 800 | M64 (2 1/2") |
1340 | 1600 | 145 | 65 | 400 | 400 | 400 | 400 | 400 |
| 900 | 1150 | 935 | 1100 | 950 | ||||||
| - | - | 930 | 1100 | 950 x 2 | ||||||
| 2600 | 3100 | 3600 | 4100 | 4600 | ||||||
| YBP 1000 | M64 (2 1/2") |
1700 | 2000 | 160 | 70 | 500 | 500 | 500 | 500 | 500 |
| 1000 | 1250 | 1000 | 1170 | 1000 | ||||||
| - | - | 1000 | 1160 | 1000 x 2 | ||||||
| 3000 | 3500 | 4000 | 4500 | 5000 | ||||||
| YBP 1300 | M76 (3") |
2250 | 2600 | 190 | 75 | 650 | 650 | 650 | 650 | 650 |
| 1150 | 1400 | 1100 | 1270 | 1075 | ||||||
| - | - | 1100 | 1260 | 1075 x 2 | ||||||
| 3600 | 4100 | 4600 | 5100 | 5600 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.

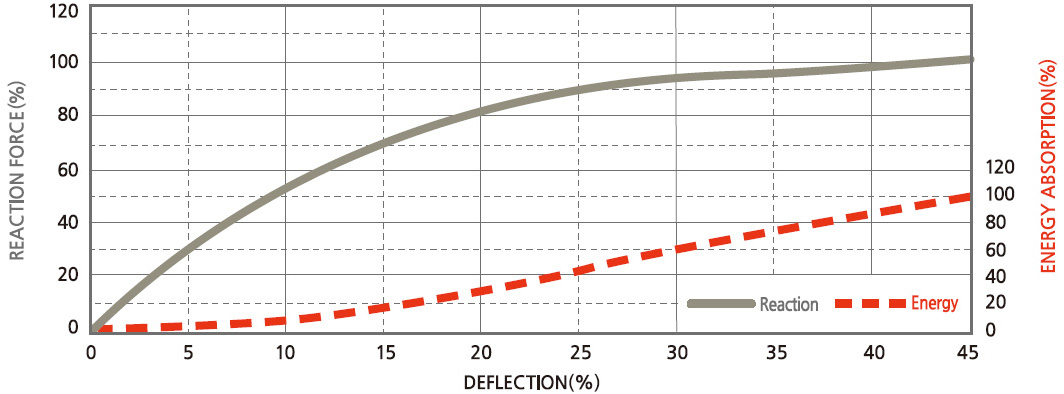

Performance Curve
