CY Fender(YCY)
If see more information on the product,
Please click right “Download” button

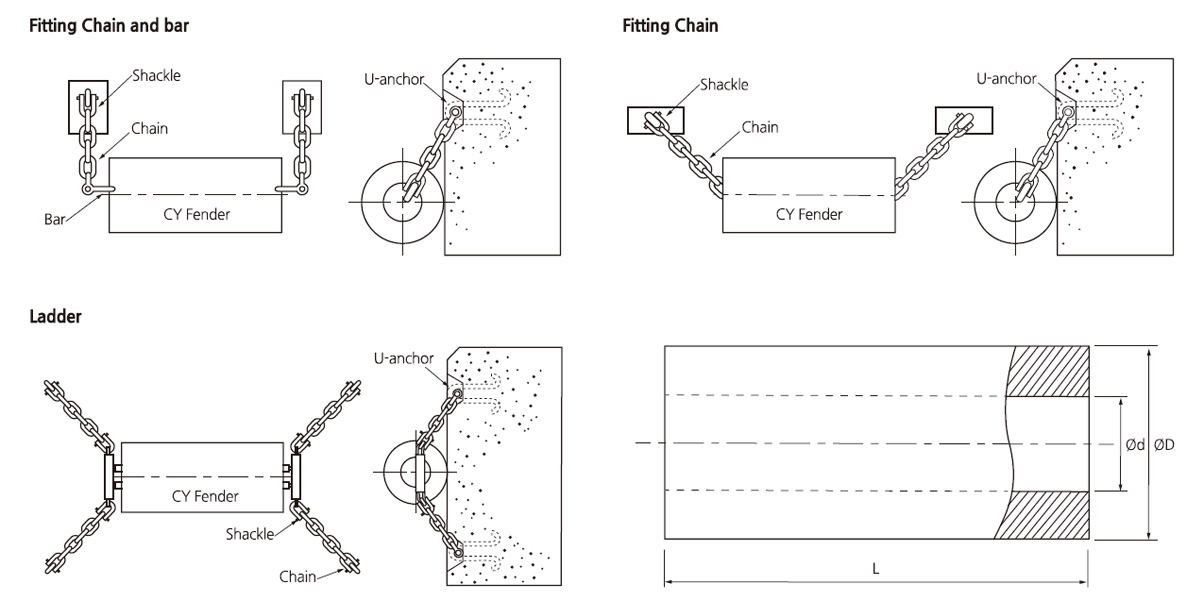

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Size | YCYØ150 ×Ø75 | YCYØ200 ×Ø100 | YCYØ300 ×Ø150 | YCYØ400 ×Ø200 | YCYØ500 ×Ø250 | YCYØ600 ×Ø300 | YCYØ800 ×Ø400 | YCYØ1000 ×Ø500 | YCYØ1200 ×Ø600 | YCYØ1400 ×Ø700 | YCYØ1600 ×Ø800 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ØD | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1,000 | 1,200 | 1,400 | 1,600 |
| Ød | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 700 | 800 |
| L(m) | 15 | 15 | 15 | 15 | 15 | 12 | 12 | 10 | 8 | 8 | 5 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.
