SBP Fender(YSBP)
If see more information on the product,
Please click right “Download” button

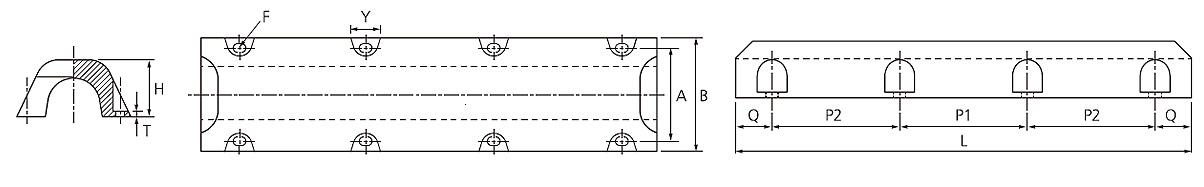

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Size | F | A | B | T | Y | R | 1000L | 1500L | 2000L | 2500L | 3000L | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | 4° | 8° | P2 | Q | P2 | Q | P2 | Q | P2 | Q | P1 | P2 | Q | |||||
| YSBP 250H | M30(1 1/4") | 410 | 500 | 25 | 130 | over 3m | under 3m | 560 | 220 | 560X2 | 190 | 560X3 | 160 | 700X2 | 200 | 700X2 | 560X2 | 240 |
| YSBP 300H | M36(1 1/2") | 490 | 600 | 30 | 140 | over 3m | under 3m | 560 | 220 | 560X2 | 190 | 560X3 | 160 | 700X2 | 200 | 700X2 | 560X2 | 240 |
| YSBP 400H | M36(1 1/2") | 660 | 800 | 40 | 140 | over 4m | under 4m | 560 | 220 | 560X2 | 190 | 560X3 | 160 | 700X2 | 200 | 700X2 | 560X2 | 240 |
| YSBP 500H | M30(1 3/4") | 820 | 1000 | 50 | 170 | over 4m | under 4m | 560 | 220 | 560X2 | 190 | 560X3 | 160 | 700X2 | 200 | 700X2 | 560X2 | 240 |
| YSBP 600H | M48(2") | 990 | 1200 | 60 | 180 | over 5m | under 5m | 560 | 220 | 560X2 | 190 | 560X3 | 160 | 700X2 | 200 | 700X2 | 560X2 | 240 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.

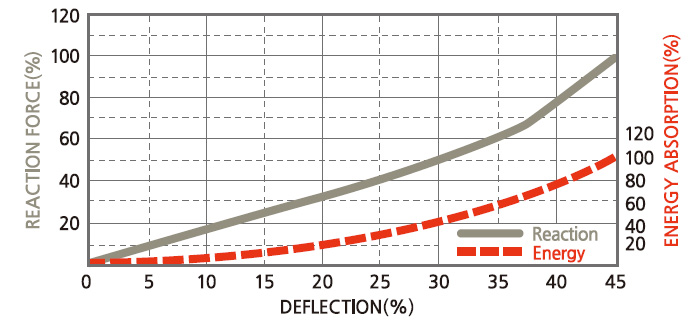

Performance Curve
