Turtle Fender(YTF)
If see more information on the product,
Please click right “Download” button

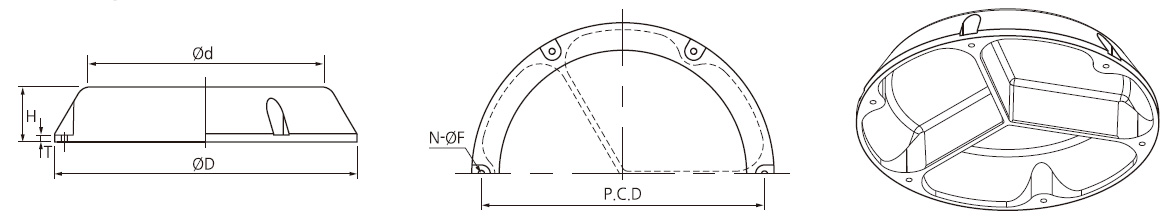

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Height | F | N | H | T | ØD | Ød | P.C.D |
|---|---|---|---|---|---|---|---|
| YTF 200H | 22 | 6 | 200 | 25 | 110 | 900 | 1030 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.

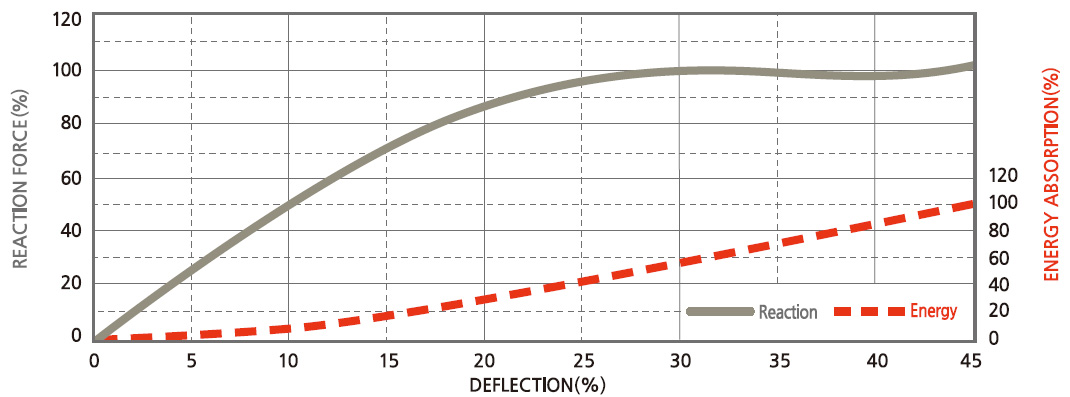

Performance Curve
