Roller Fender(YRF)
If see more information on the product,
Please click right “Download” button

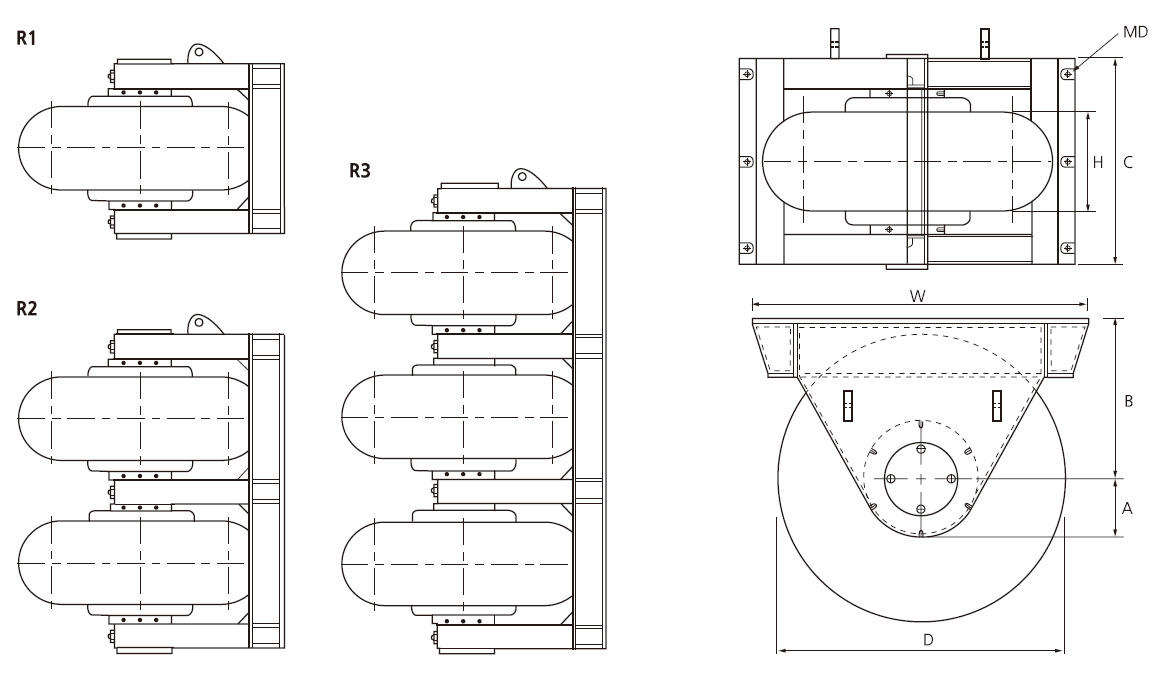

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Type | MD | Roller Fender | Frame | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | D | H | A | B | W | R1-C | R2-C | R3-C | |
| YRF R600 | M22(7/8") | 600 | 200 | 110 | 320 | 695 | 420 | 770 | 1120 |
| YRF R750 | M22(7/8") | 750 | 250 | 140 | 400 | 870 | 510 | 935 | 1360 |
| YRF R900 | M24(1") | 900 | 300 | 165 | 480 | 1040 | 610 | 1120 | 1630 |
| YRF R1200 | M27(1 1/8") | 1200 | 400 | 220 | 640 | 1380 | 820 | 1500 | 2180 |
| YRF R1500 | M30(1 1/4") | 1500 | 500 | 275 | 800 | 1740 | 1010 | 1850 | 2690 |
| YRF R1800 | M36(1 1/2") | 1800 | 600 | 330 | 960 | 2080 | 1210 | 2215 | 3220 |
| YRF R2100 | M42(1 3/4") | 2100 | 700 | 385 | 1155 | 2440 | 1410 | 2590 | 3770 |
| YRF R2400 | M48(2") | 2400 | 800 | 440 | 1280 | 2770 | 1610 | 2950 | 4290 |
| YRF R2700 | M56(2 1/4") | 2700 | 900 | 495 | 1440 | 3130 | 1810 | 3300 | 4790 |
| YRF R3000 | M64(2 1/2") | 3000 | 1000 | 550 | 1600 | 3480 | 2010 | 3660 | 5310 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.
