W-Fender
If see more information on the product,
Please click right “Download” button

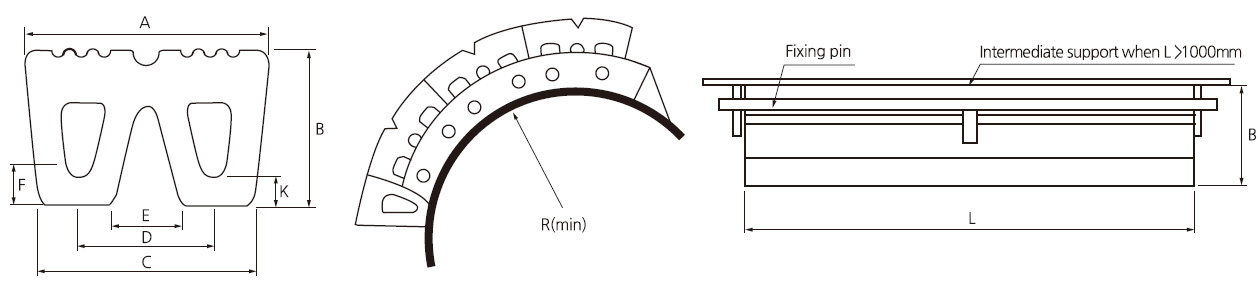

Drawing
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Type | A | B | C | D | E | F | K | L | Weight |
|---|---|---|---|---|---|---|---|---|---|
| W32-20 | 320 | 200 | 280 | 180 | 100 | 67 | 50 | 2000 | 51 |
| W40-25 | 400 | 250 | 350 | 220 | 110 | 75 | 55 | 2000 | 81 |
| W48-30 | 480 | 300 | 426 | 269 | 135 | 90 | 65 | 2000 | 120 |
| W50-45 | 500 | 450 | 420 | 255 | 90 | 100 | 75 | 2000 | 180 |
- M-Fenders and W-Fenders are not interchangeable
Fixings
| Pin | Flat bar | Rmin |
|---|---|---|
| Ø25 | 100 X 20 | 600 |
| Ø30 | 120 X 20 | 800 |
| Ø40 | 140 X 20 | 900 |
| Ø40 | 150 X 20 | 1000 |
Performance Curve
