Expansion Joint
If see more information on the product,
Please click right “Download” button
Download

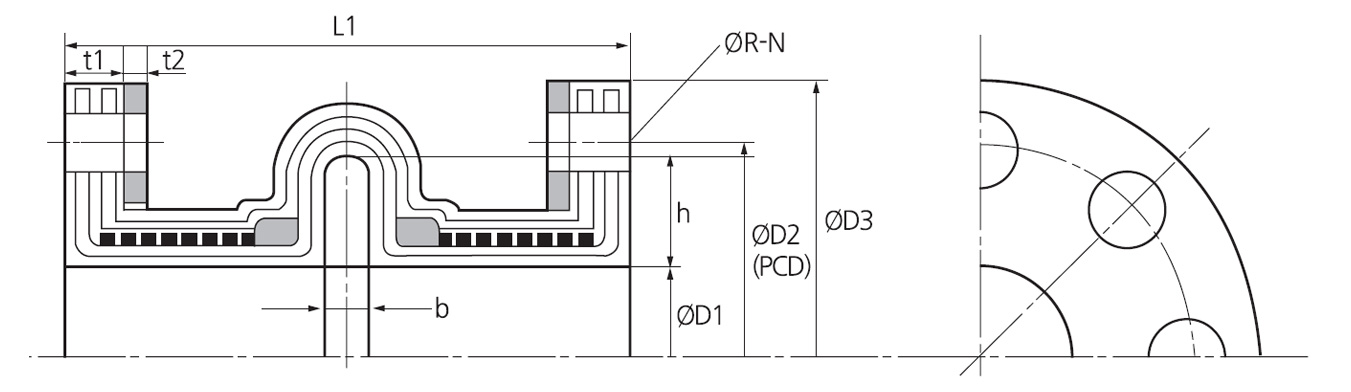

Drawing
- ①Std. pipe flange
- ②Steel ring
- ③Duc ply
- ④Tube rubber
- ⑤Control units
- ⑥Control bolt
- ⑦Control plate
- ⑧Steel washer
- ⑨Rubber washer
- ⑩Fitting bolts
- ⑪Pipe sleeve
- ⑫Split metal retaining ring
- ⑬Cover rubber
