DC Type & RC Type Fender
If see more information on the product,
Please click right “Download” button

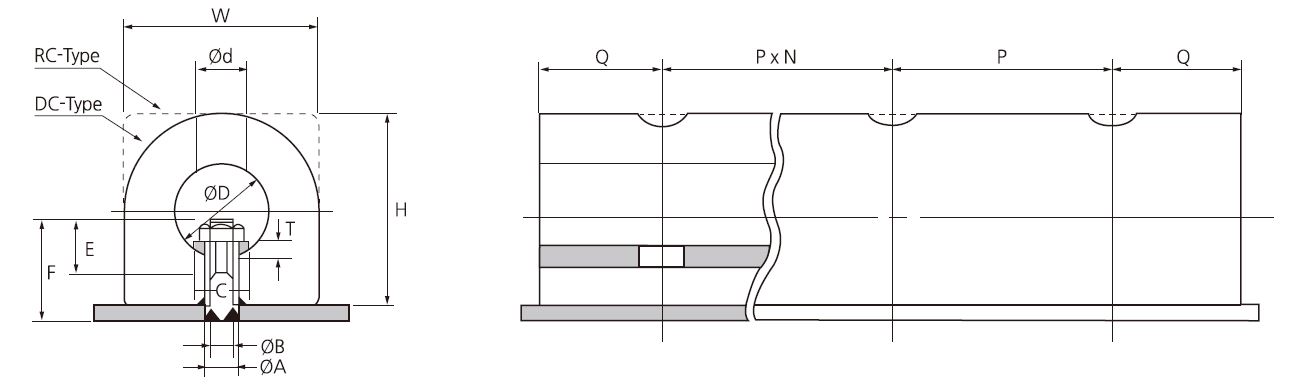

Vertical Fitting Bolts Method

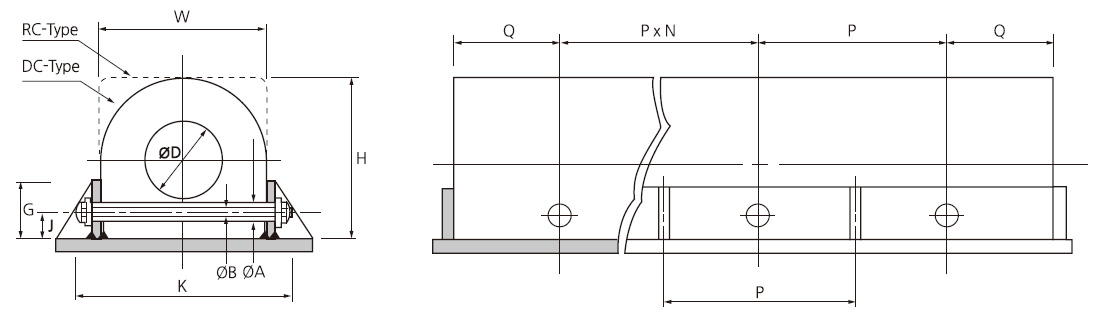

Cross Fitting Bolts Method
Dimension
*왼쪽으로 드래그 하시면 전체 표를 확인하실 수 있습니다.
| Size | ØA | ØB | C | ØD | Ød | E | F | G | H | J | K | P | Q | T | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150H×Ø75 | 22 | 19 | 50 | 75 | 60 | 40 | 80 | 60 | 150 | 26 | 220 | 250 ~ 350 | 150 ~ 200 | 16 | 150 |
| 200H×Ø100 | 25 | 22 | 65 | 100 | 65 | 50 | 95 | 75 | 200 | 35 | 280 | 250 ~ 350 | 150 ~ 200 | 19 | 200 |
| 250H×Ø125 | 28 | 25 | 80 | 125 | 70 | 60 | 112 | 100 | 250 | 43 | 350 | 250 ~ 350 | 150 ~ 200 | 22 | 250 |
| 300H×Ø150 | 32 | 28 | 90 | 150 | 80 | 70 | 132 | 125 | 300 | 52 | 400 | 250 ~ 350 | 150 ~ 200 | 25 | 300 |
| 400H×Ø200 | 36 | 32 | 100 | 200 | 90 | 80 | 180 | 150 | 400 | 70 | 520 | 250 ~ 350 | 150 ~ 200 | 28 | 400 |
| 500H×Ø250 | 42 | 38 | 120 | 250 | 100 | 90 | 210 | 175 | 500 | 88 | 640 | 250 ~ 350 | 150 ~ 200 | 32 | 500 |
- Above detail dimension of components can be changed depending on owner specification and local environment condition.
- Detail dimension will be guided by our drawing and specification.
